Simulation Overview

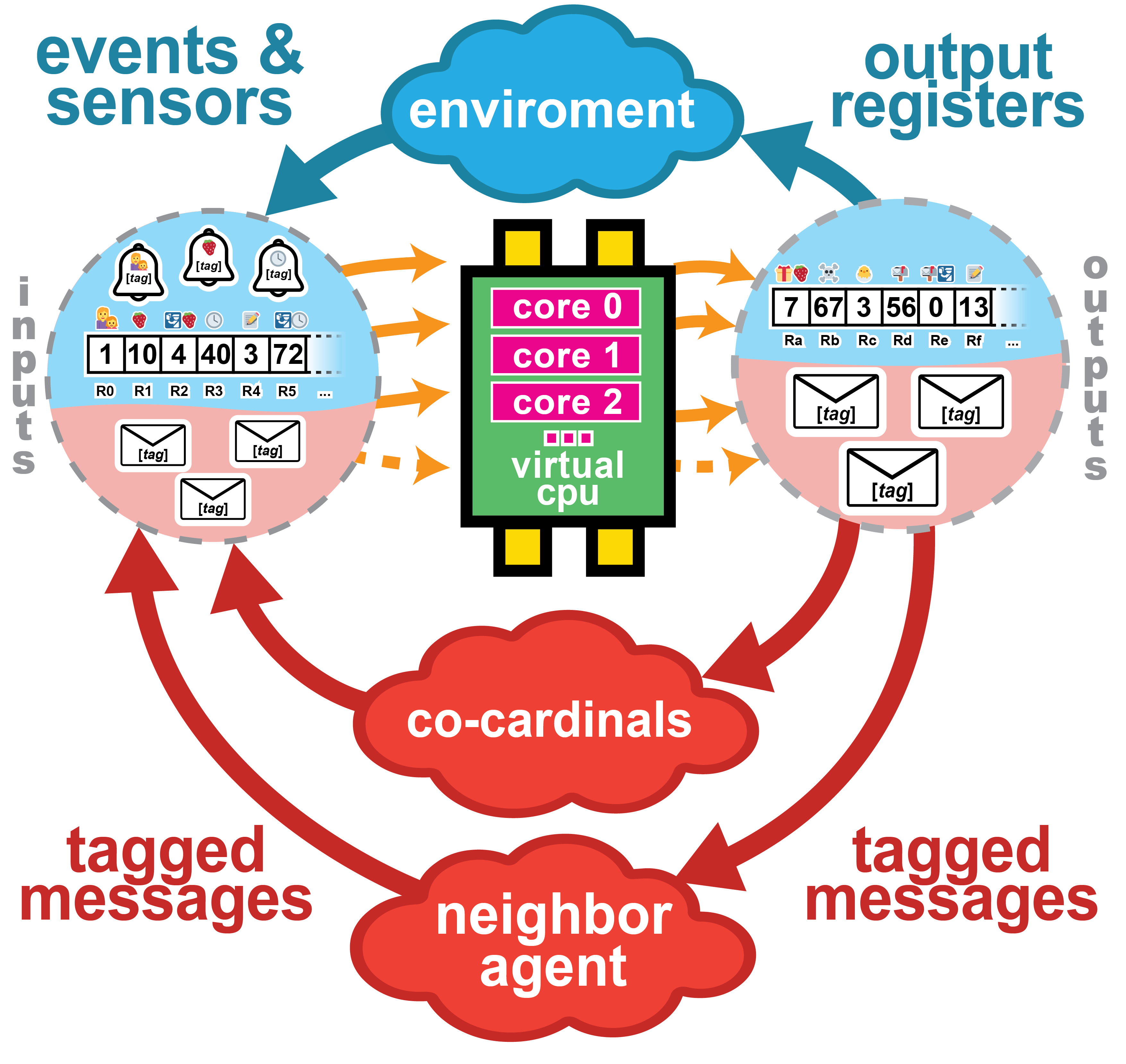

Overview of genome execution. Tagged events and messages(shown as bells and envelopes, respectively) activate module executionon virtual cores. Simulation state can also be read directly using sensorinstructions to access input registers. Special instructions write to outputregisters, allowing interaction with the simulation, and generate taggedmessages, allowing interaction with other virtual CPUs

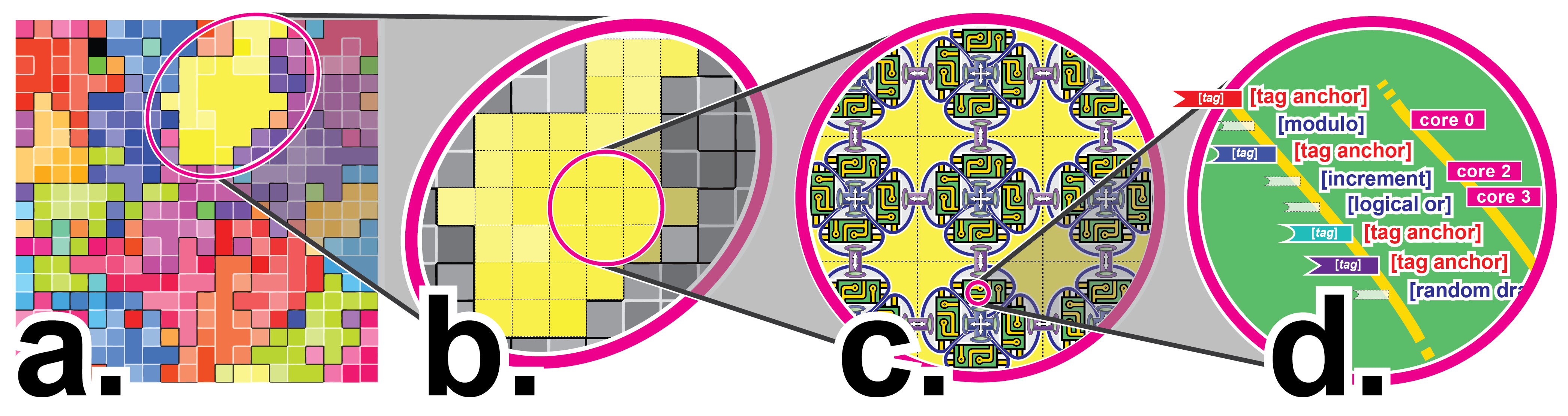

Overview of DISHTINY system. Cells occupy slots on a toridal grid (Subfigurea). As cells reproduce, they may grow their existing kin group(shown here by color) or splinter off to found new ones. Each cell, shown here bounded within black squares, is controlled by four virtual CPUs, referred to as“cardinals” and shown here within triangles (Subfigureb). Cardinals within a cell can interact via message passing (blue conduits). Cardinals can interact withthe corresponding cardinal in their neighboring cell through message passing or simulation intrinsics (i.e., resource sharing, offspring spawning, etc.), repre-sented here by purple conduits. These inter-cell interactions may span physical hardware threads or processes. All virtual CPUs within a cell independentlyexecute the same linear genetic program (Subfigurec). Tagged subsections of this linear genetic program (“modules”) activate in response to stimuli.
